Rock Wool Production Line with 1200-2400mm Length and Class A1 Fire Resistance Including Overseas Engineer Support

Rock Wool Production Line with 1200-2400mm Length and Class A1 Fire Resistance Including Overseas Engineer Support

Nome da marca:	Greenson
MOQ:	1
preço:	US $2000000-4000000
Condições de pagamento:	L/c, t/t

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Hebei

Nome do produto:

Fabricado na China linha de produção de painel de lã de rocha fábrica de máquinas para fabricação de

Palavra -chave:

Planta de linha de produção de placas de lã de rocha

Capacidade de produção:

10000-50000 toneladas/ano

Densidade:

100-200 kg/m3

Processo principal:

Mistura, moldagem, corte de água, secagem

Resistência ao fogo:

Classe A1

Comprimento:

1200-2400mm

Serviço pós-venda:

Engenheiros disponíveis para máquinas de serviço no exterior

Destacar:

1200-2400mm Length Rock Wool Production Line

Class A1 Fire Resistance Mineral Wool Board Production Line

Overseas Engineer Support Rock Wool Panel Production Line

Descrição do produto

Made In China Rock Wool Panel Production Line Mineral Wool Making Machine Factory

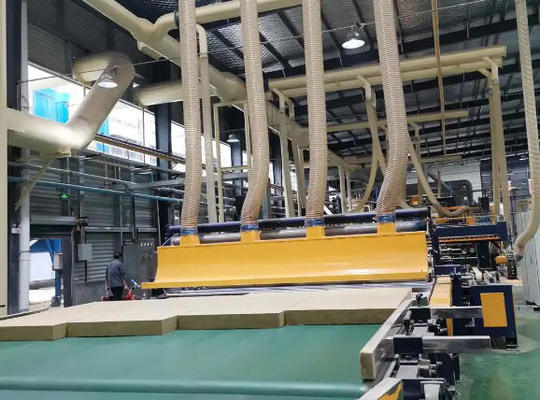

The raw materials used in rock wool production include basalt, dolomite, binders, etc. The raw materials are loaded into the hopper by the elevator, and the melting furnace is heated and melted into the melt flow tank. The lava flow is cooled and spun into fibers by the centrifuge, and then sprayed into the fiber molding room. The binder is added during the spraying process, and the fibers are heated by the negative pressure wind. Pull down to the mesh belt to form the original felt. The mesh belt transports the original felt to the pendulum cloth machine to swing the cloth. The original felt after the swing cloth is transported to the curing furnace by the cloth machine, and runs forward between the upper and lower chain belts. The hot air blower blows the hot air into the curing furnace. The cotton felt in the furnace is solidified, and the solidified products are cut, first longitudinally cutting, and then transversely cutting, and the finished product is packaged and put into storage.

Product Parameters

Specification	Details
Application	Manufacture Rock Wool Blanket, Rock Wool Board
Capacity	10000tons/year, 20000tons/year, 30000tons/year, 40000tons/year, 50000tons/year, 60000tons/year, 70000tons/year, 80000tons/year
Raw materials	Basalt, dolomite, binders and so on
Main energy supply system	Raw coal energy supply system Power energy supply system Natural gas energy supply system

Frequently Asked Questions

Q: Where is the factory located?

A: We are located in Shijiazhuang, Hebei Province.

Q: What is your delivery time?

A: Usually, we make merchandise inventory. If we have the products in stock, the delivery time is 30-60 days after receiving the deposit. If we don't have the products in stock, we will arrange the production immediately, with delivery time of 1-3 months depending on order quantity.

Q: How can we ensure quality?

A: The final inspection is always carried out before shipment.

Q: How to install the equipment after purchasing?

A: Professional designing, manufacturing, installation and commissioning team. On-site installation and commission until the production of qualified products.

Q: Do you offer a guarantee?

A: Yes, we guarantee our product for one year. Provide after-sales service support with technical support.
